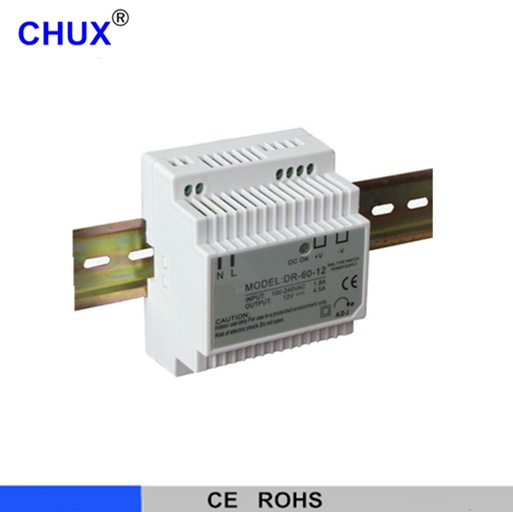

60W Single group rail type switching power supply most popular smps
Features:·universal AC input
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage
·cooling by free air convectio
·can be installed on DIN rail: TS-35/7.5or TS-35/15
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
DATA sheet
Model |
DR-60-5 |
DR-60-12 |
DR-60-24 |
|
output |
DC voltage |
5V |
12V |
24V |
Voltage tolerance |
±2% |
±1% |
±1% |
|
Rated current |
6.5A |
4.5A |
2.5A |
|
Current range |
0~6.5A |
0~3.5A |
0~2.5A |
|
Rated power |
32.5W |
54W |
60W |
|
Ripple&noise |
100mvp-p |
100mvp-p |
150mvp-p |
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
|
input |
Voltage range |
90~264VAC,127~373VDC |
||
frequency |
47~63HZ |
|||
AC current |
1.2A/110VAC,0.65A/220VAC |
|||
efficiency |
76% |
82% |
84% |
|
Inrush current |
Cold start current 25A/115VAC,50A/230VAC |
|||
Leakage current |
< 1mA/240VAC |
|||
protection |
Over load |
Rated output power105%~150% start over load protection |
||
protection type:hiccup mode,auto-recovery after fault condition is removed |
||||
over voltage |
6.8~8.2V |
15.6~17.8V |
30.6~33.2V |
|
protection type:cut off output voltage,diode clamp |
||||
environment |
Working temp,humidity |
-20°C~+60°C,20%~90%RH |
||
Storagetemp,humidity |
-40°C~+85°C,10%~95%RH non-condensing |
|||
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
|||
safety |
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
|||
Fitstandard |
Safety standard |
Fit UL1012 |
||
EMC standard |
comply with EN55022,CLASSA |
|||
others |
Dimension |

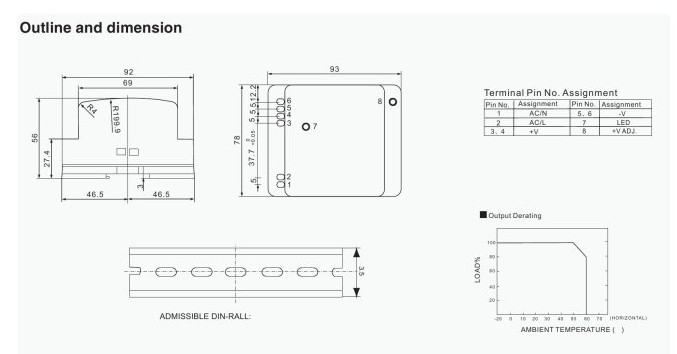

78*93*56mm (L*W*H) |
||
Weight/packing |
0.3kg/45pcs/13.2KG |
|||
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
