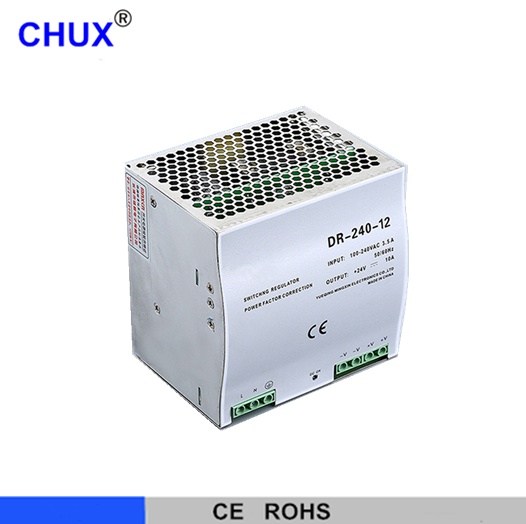

DR 240w

Product No.：2015120113713
Online Inquiry

240W Single group rail type switching power supply popular model

Features:
1) Universal AC input full range
2) Protection: Overload, short circuit, over voltage
3)Cooling by free air convection
4)Can be installed on Din Rail TS-35/7.5
5)Isolation Class II
6)Led indicator for power on
7)100% full load burn-in test
8) Competitive price, high reliability
9) Dimensions: 125x 100 x 125.2mm
10) CE, RoHS certified

Model		DRP-240-24	DRP-240-36	DRP-240-48
Output	DC output Voltage	24V	36V	48V
	Voltage tolerance	±1.0%	±1.0%	±1.0%
	Rated Current	10A	6.6A	5A
	Related Power	240w	240w	240w
	Wave&Noise	80mVp-p	150mVp-p	150mVp-p
	Adjustable range for DC Voltage	±10%	±10%	±10%
	Set up,rise,hold up time	800ms 40ms 20ms
Input	Voltage Range
	Input Current	4.5A/115VAC 0.5A/230VAC
	Efficiency	80%	85%%	85%
	AC inrush current	Cold start current 15A/115V 30A /230VAC
	Leakage current	<0.5mA/240VAC
Protection	Overload
		Protection type: cutoff output, recovery after restart power
	Over voltage	13.8V-16.2V		55.2V-64.8V
		Hiccup mode,recovers automatically after fault condition
Environment	Working temp humidity
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	Withstand voltage
		I/P-FG:1.5KVAC 1min
		O/P-FG:0.5KVAC 1min
Standard	Safety standard
	Refer	Design refer to GB4943,UL60950,EN60950
	EMC standard	Design refer to GB9254,EN55022 Class A
Size	size
	Package	1.2kg, 16 pcs/20kg
