Products >> SOLID STATE RELAY >> solid state relay ssr

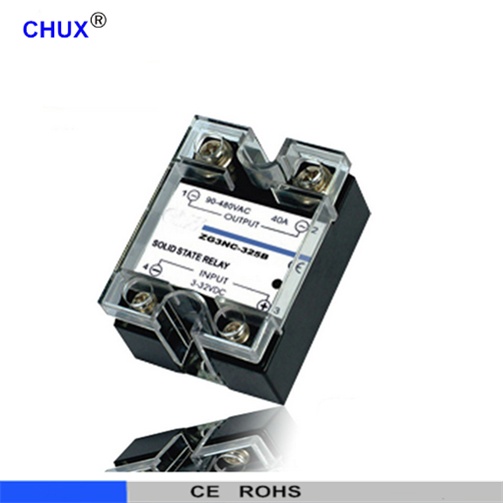

solid state relay DC-AC 24-480VAC SSR 10A 25A 40A 60A 80A 100A
| load current | 10A,20A,25A,30A,40A,50A, |
| 60A,75A,80A,90A,100A,120A | |
| load voltage | 24-480VAC |
| input voltage | 3-32VDC |
| input current | DC3-25mA |
| voltage drop | ≤1.5V |
| leakage current | ≤2mA |
| on-off time | ≤10mS |
| dielectric strength | 2500VAC |
| insulation resistance | 1000MΩ500VDC |
| ambient temperature | -30~+75℃ |
| mounting method | bolt fixed |
| working indication | LED |
| weight | 90g(10A,25A) 135g(40A and above) |
Previous Product：solid state relay AC-AC
Next Product：ZG3M 3A 5A
