Products >> SOLID STATE RELAY >> solid state relay ssr

ZG3M 3A 5A

Product No.：2015120141512
Online Inquiry

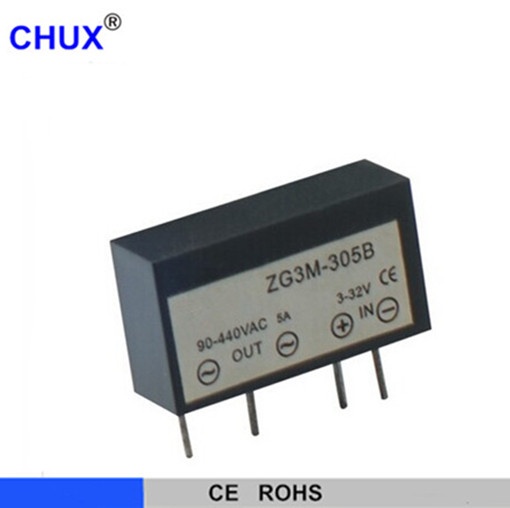

Minuture PCB solid state relay SSR ZG3M 3A 5A

Our relay ZG3M have compact size,CE approval,reliable quality.
It is application in PCB board.
Material:Plastic with four pins

ZG3M
Load Voltage	220VAC or 380VAC
Load Current	3A,5A
Control Voltage	DC3-32V
Control Current	6-35mA
On Voltage	≤1.5VAC
Off-state Leakage Current	≤4mA
Time Off	≤10ms
Dielectric Strength	1500VAC
Insulation Resistance	100MΩ/500VDC
Ambient Temperature	-25~+75°C
Mountiong Methods	PCB
The work instructions	/
Weight	16g
