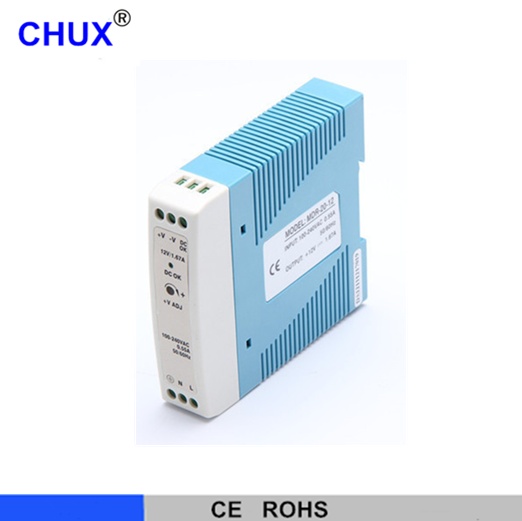

MDR-10W

Product No.：2015114113156
Online Inquiry

MDR 10W DIN RAIL SMPS PSU SWITCHING POWER SUPPLY

Features

10W dinrail switching power supply
Universal AC input/full range
Protections: Short circuit/over load/over voltage
Cooling by free air convection
Can be installed on DIN-Rail: TS-35/7.5 or TS-35/15
Built in DC OK active signal
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
1 year warranty

Model		MDR-10-5	MDR-10-12	MDR-10-15	MDR-10-24
Output	DC output Voltage	5V	12V	15V	24V
	Voltage tolerance	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	2A	0.84A	0.67A	0.42A
	Related Power	10w	10w	10w	10w
	Wave&Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p
	Set up,rise time	800ms 30ms/230VAC 1000ms,30ms/115VAC at full load
	hold up time	120ms/230VAC 25ms/115VAC at full load
Input	Voltage Range	85 ~ 264VAC 47-63HZ 120-370VDC
	Input Current	0.33A/115VAC 0.21A/230VAC
	Efficiency	77%	81%	81%%	84%
	AC inrush current	Cold start current 35A/115V 70A/230VAC
	Leakage current	<1mA/240VAC
Protection	Overload	Above 105% rated output power
		hiccup mode, recovery automatically after fault condistion is removed
	Over voltage	5.75V-6.75V	13.8V-16.2V	17.25-20.25V	27.6-32.4V
		Shut down o/p voltage, re-power on to recover
Function	DC OK active single	3.75-6V/50mA	9-13.5V/40mA	11.5-16.5V/40mA	18-27V/20mA
Environment	Working temp humidity	-20~+70°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	safety standards	UL508,TUV EN60950-1 approved
	Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.5KVA
	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25 /70%RH
	EMC emission	Compliance to EN55011,EN55022,EN61204-3 class B,EN61000-3-2,-3
Size	size	L22.5W90H100mm
	Package	0.17kg,72pcs/14kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 f ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
