Products >> PROXIMITY SENSOR >> cylinder inductive type

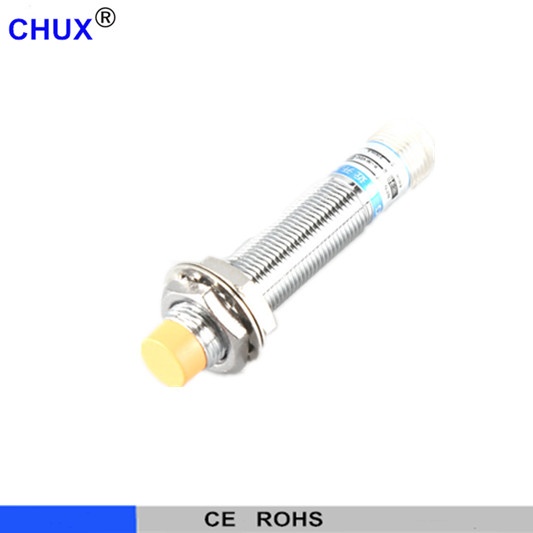

  • half sets cylinder type proximity sensor switch without cable M12 3pin 4pin
half sets cylinder type proximity sensor switch without cable M12 3pin 4pin

half sets cylinder type proximity sensor switch without cable M12 3pin 4pin

 half sets cylinder type proximity sensor switch without cable M12 3pin 4pin



外形尺寸
OVERALL DIMENSIONS



     检测距离 DETECTION DISTANCE                                                                                      2mm




F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IM12-2-DNA-C half sets

NC

IM12-2-DNB-C half sets

NO+NC

IM12-2-DNC-C half sets

PNP

NO

IM12-2-DPA-C half sets

NC

IM12-2-DPB-C half sets

NO+NC

IM12-2-DPC-C half sets

二线制
two wire
system

NO



NC



SCR
可控硅
Control-
lable
silicon

NO



NC



NO+NC



继电器输出Relay output





     检测距离 DETECTION DISTANCE                                                                                          4mm





F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IM12-4-DNA-C half sets

NC

IM12-4-DNB-C half sets

NO+NC

IM12-4-DNC-C half sets

PNP

NO

IM12-4-DPA-C half sets

NC

IM12-4-DPB-C half sets

NO+NC

IM12-4-DPC-C half sets

二线制
two wire
system

NO



NC



SCR
可控硅
Control-
lable
silicon

NO



NC



NO+NC



继电器输出Relay output



输出电流
Controloutput

DC

200mA

SCR/继电器 Relay

300mA

  输出电压降Output voltagc dropDC/AC

直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V

  消耗电流Consumption current

直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA

  标准检测物体Standard detected object

15X15X1(A3铁iron)

  重复精度Repeated precision

0.01

  响应频率DC/AC

400Hz/25Hz

  工作环境温度Working environment temperature

-25℃~+75℃

  绝缘电阻Insulation resistance

≥50MΩ

  外壳材料Shell material

金属Metal

  防护等级Protection grade

IP67

  可替代国内型号Altemative model at home and abroad
