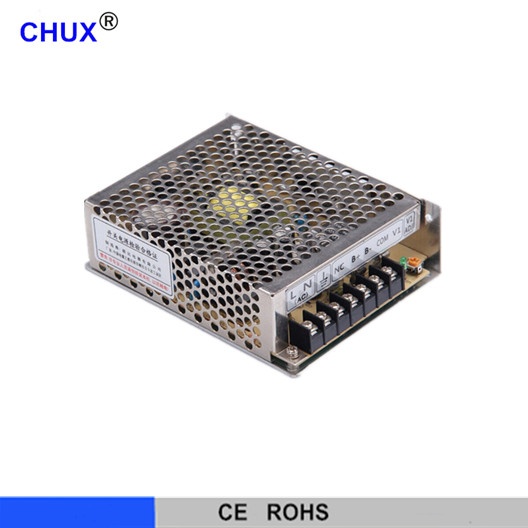

NEW TYPE AD-55W
Feature:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protections
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 45 KHz
1 year warranty
SPECIFICATION |
||||
MODEL |
AD-55A |
AD-55B |
||
OUTPUT |
|
|
||
Output number |
CH1 |
CH2 |
CH1 |
CH2 |
DC voltage |
13.8V |
13.4V |
27.6V |
26.5V |
Rated Current |
3.5A |
0.23A |
1.8A |
0.16A |
Current Range |
0~4A |
-------- |
0~2A |
-------- |
Rated Power |
51.38W |
53.92W |
||
Ripple & Noise |
100mVp-p |
-------- |
100mVp-p |
-------- |
Voltage Adj. Range |
CH1:12~14.5V |
CH1:24~29V |
||
Voltage Tolerance |
±1.0% |
-------- |
±1.0% |
-------- |
Line Regulation |
±0.5% |
-------- |
±0.5% |
-------- |
Load Regulation |
±0.5% |
-------- |
±0.5% |
-------- |
Setup, Rise Time |
800ms,50ms/230VAC 1600ms,50ms/115VAC at full load |
|||
Hold Up Time |
80ms/230VAC 16ms/115VAC at full load |
|||
|
|
|||
INPUT |
|
|||
Voltage Range |
88~264VAC 47~63Hz; 124~370VDC |
|||
AC Current |
1.6A/115VAC 1A/230VAC |
|||
Efficiency |
71% |
74% |
||
Inrush Current |
Cold start 20A/115VAC 40A/230VAC |
|||
Leakage Current |
<1mA /240VAC |
|||
|
|
|||
PROTECTION |
|
|||
Over Load |
105~150% rated output power |
|||
Protection type: AC Charging Mode: Hiccup mode, recovers automatically after fault condition is removed UPS Mode: Protected by internal fuse |
||||
Over Voltage |
CH1:15.87~18.63V |
CH1:31.74~37.26V |
||
Protection type: Hiccup mode,recovers automatically after fault condition is removed |
||||
Battery Low |
9.5~11V |
20~22V |
||
|
|
|||
ENVIRONMENT |
|
|||
Working Temp. |
-10~+60°C (Refer to “Derating Curve”) |
|||
Working Humidity |
20~90%RH non-condensing |
|||
Storage Temp., Humidity |
-20~+85°C,10~95%RH |
|||
Temp. Coefficient |
±0.03%/ °C(0~50°C )on CH1 output |
|||
Vibration |
10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes |
|||
|
|
|||
SAFETY &EMC |
|
|||
Safety Standards |
UL60950-1, TUV EN60950-1 approved |
|||
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|||
Isolation Resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25°C /70%RH
|
|||
EMC Emission |
Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3
|
|||
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A
|
|||
|
|
|||
OTHERS |
|
|||
Dimension |
159*97*38mm(L*W*H) |
|||
Weight |
0.5Kg |
|||
Packing |
24pcs/12.6Kg/0.75CUFT |
