Product name : MDR-60W
Item : 2015120113343
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

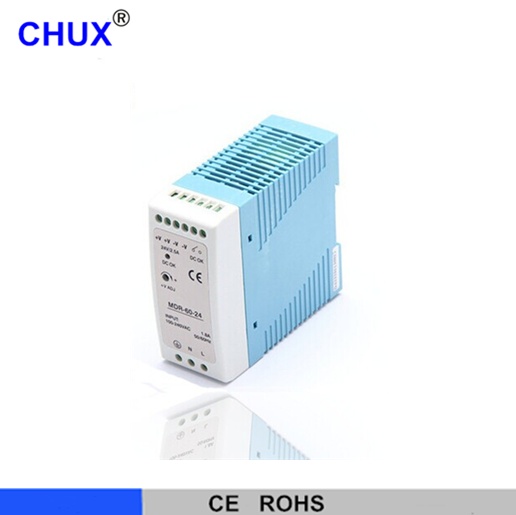

 MDR60w Industrial DIN Rail power supply

 60W dinrail switching power supply
Universal AC input/full range
Protections: Short circuit/over load/over voltage
Cooling by free air convection
Can be installed on DIN-Rail: TS-35/7.5 or TS-35/15
Built in DC OK active signal
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
1 year warranty
Model   MDR-60-5 MDR-60-12 MDR-60-24 MDR-60-48
Output DC output Voltage 5V 12V 24V 48V
Voltage tolerance ±1.0% ±1.0% ±1.0% ±1.0%
Rated Current 10A 5A 2.5A 1.25A
Related Power 50w 60w 60w 60w
Wave&Noise 80mVp-p 120mVp-p 150mVp-p 150mVp-p
Voltage ADJ range 5-6V 12-15V 24-30V 48-56V
Set up,rise time 500ms  30ms/230VAC  500ms,30ms/115VAC at full load
hold up time 120ms/230VAC 25ms/115VAC at full load
Input Voltage Range 85 ~ 264VAC  47-63HZ 120-370VDC
Input Current 1.8A/115VAC 1A/230VAC
Efficiency 78% 86% 88%% 87%
AC inrush current Cold start current  30A/115V 60A/230VAC
Leakage current <1mA/240VAC
Protection Overload Above 105% rated output power
hiccup mode, recovery automatically after fault condistion is removed
Over voltage 6.25-7.25V 15.6-18V 31.6-36V 57.6-64.8V
Shut down o/p voltage, re-power on  to recover
Function DC OK active single Relay contact rating(max) :30V/1A resistive
Environment Working temp humidity -20~+70°C 20%~90%RH
Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing
Safety safety standards UL508,TUV EN60950-1 approved
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.5KVA
Isolation resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25 /70%RH
EMC emission Compliance to EN55011,EN55022,EN61204-3 class B,EN61000-3-2,-3
 Size size 40*90*100mm (W*H*D)
Package 0.33kg,42pcs/15kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
