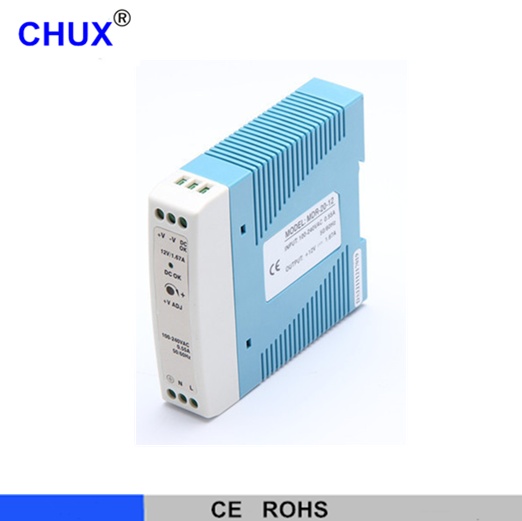

 MDR 20W DIN RAIL SWITCHING POWER SUPPLY

 Features



1. Universal AC input/ Full range

2. Installed on DIN rail TS35/ 7.5 OR 15

3. Protection: short circuit/ over-load/  over-voltage

4. No load power consumption <0.75W

5. LED indicator for power on

6. DC OK signal output (20W)

7. DC OK relay contact (40W&60W)

8. Cooling by free air condition

9. 100% full load burn-in

10. 2 years warranty

11. MDR-20-24 12V 1.67A 20W Din Rail Switching Power Supply



Specification



Model   MDR-20-5 MDR-20-12 MDR-20-15 MDR-20-24
Output DC output Voltage 5V 12V 15V 24V
Voltage tolerance ±1.0% ±1.0% ±1.34% ±1.0%
Rated Current 3A 1.67A 0.67A 0.42A
Related Power 15w 20w 20w 24w
Wave&Noise 80mVp-p 120mVp-p 120mVp-p 150mVp-p
Voltage adjust range 4.75-5.5V 10.8-13.2V 13.5-16.5V 21.6-26.4V
Set up,rise time 500ms  30ms/230VAC  1000ms,30ms/115VAC at full load
hold up time 50ms/230VAC 20ms/115VAC at full load
Input Voltage Range 85 ~ 264VAC  47-63HZ 120-370VDC
Input Current 0.55A/115VAC 0.35A/230VAC
Efficiency 77% 81% 81%% 84%
AC inrush current Cold start current  35A/115V 70A/230VAC
Leakage current <1mA/240VAC
Protection Overload Above 105%-160% rated output power
hiccup mode, recovery automatically after fault condistion is removed
Over voltage 5.75V-6.75V 13.8V-16.2V 17.25-20.25V 27.6-32.4V
Shut down o/p voltage, re-power on  to recover
Function DC OK active single 3.75-6V/50mA 9-13.5V/40mA 11.5-16.5V/40mA 18-27V/20mA
Environment Working temp humidity -20~+70°C 20%~90%RH
Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing
Safety safety standards UL508,TUV EN60950-1 approved
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.5KVA
Isolation resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25 /70%RH
EMC emission Compliance to EN55011,EN55022,EN61204-3 class B,EN61000-3-2,-3

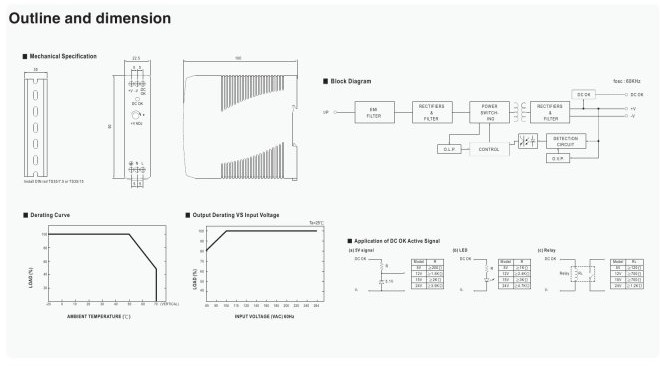

 Size size L22.5*W90*H100mm
Package 0.19kg,72pcs/15kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25  f ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
