YUEQING CHANCE ELECTRIC CO.,LTD

Product name : DRP-480W
Item : 201541617138
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

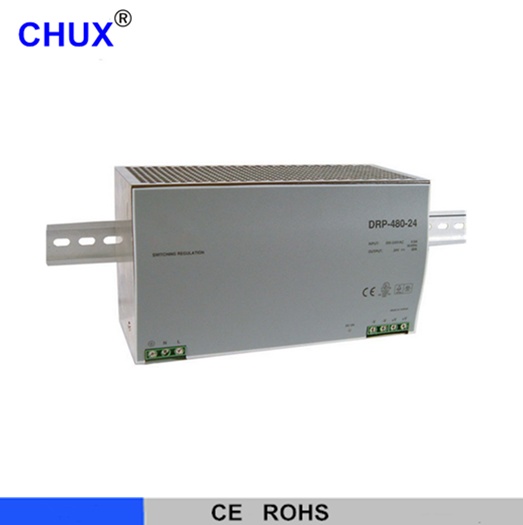

480W Single group rail type switching power supply DRP-480W



Model   DRP-480-24 DRP-480-36 DRP-480-48
Output DC output Voltage 24V 36V 48V
Voltage tolerance ±1.0% ±1.0% ±1.0%
Rated Current 20A 13.5A 10A
Related Power 480w 480w 480w
Wave&Noise 80mVp-p 150mVp-p 150mVp-p
Adjustable range for DC Voltage ±10% ±10% ±10%
Set up,rise,hold up time 800ms  40ms  20ms
Input Voltage Range
Input Current 4.5A/115VAC 0.5A/230VAC
Efficiency 80% 85%% 85%
AC inrush current Cold start current  15A/115V 30A /230VAC
Leakage current <0.5mA/240VAC
Protection Overload
Protection type: cutoff output, recovery after restart power
Over voltage 13.8V-16.2V   55.2V-64.8V
Hiccup mode,recovers automatically after fault condition
Environment Working temp humidity
Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing
Safety Withstand voltage
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
Standard Safety standard
Refer  Design refer to GB4943,UL60950,EN60950
EMC standard Design refer to GB9254,EN55022 Class A
 Size    227*125.2*100mm
Package 1.2kg, 16 pcs/20kg
