Product name : S-100W
Item : 2014312105714
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

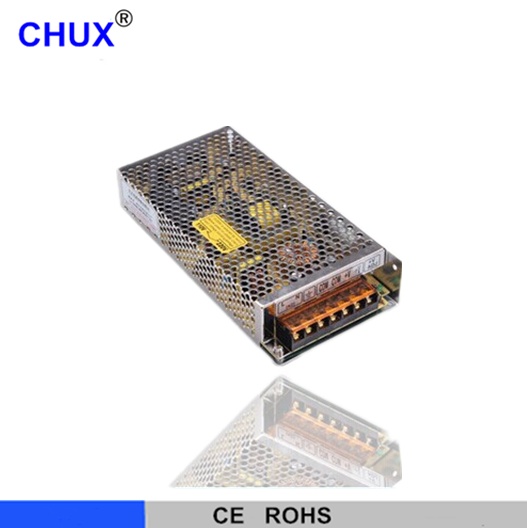

Mostly popular by customer 100w 12v 24v 48v single output switching power supply


Features :



• AC input range selectable by switch

• Protections:Short circuit/Over load/Over voltage

• Cooling by free air convection

• 100% full load burn-in test

• Fixed switching frequency at 83KHz

• 2 years warranty




Model

Specification

S-100-5

S-100-12

S-100-15

S-100-24

S-100-36

S-100-48

DC output voltage

5V

12V

15V

24V

36V

48V

Output voltage rang(Note:2)

+/-2%

+/-1%

+/-1%

+/-1%

+/-1%

+/-1%

Rated output current

40A

25.8A

23.2A

14.6A

13A

7.3A

Output current range

040A

025.8A

023.2A

014.6A

013A

07.3A

Wave and noise(Note:3)

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

Inlet stability(Note:4)

+/0.5%

+/0.5%

+/0.5%

+/0.5%

+/0.5%

+/0.5%

Load stability(Note:5)

+/1%

+/1%

+/1%

+/1%

+/1%

+/1%

DC output power

300W

348.3W

348W

351W

351W

350.4W

Efficiency

76%

79%

78%

82%

84%

83%

Adjustable range for DC voltage

6-9V

12-15V

13.5-18V

20-26.4V

34-38V

41-56V

AC input voltage range

85~132VAC/180~264VAC selectd by switch 47~63Hz;

255~370VDC

Input current

2.4A/115V  1.2A/230V

AC inrush current

Cole-start current 15A/115V 36A/230V

Leakage current

   <1mA/240VAC

Overload proctection

105%~150%

150%~200%

  105%~150%

Type:pulsing hiccup shutdown Reset:auto

recovery

Over-voltage proctection



105%~150%

150%~200%

  105%~150%

 Type:pulsing hiccup shutdown Reset:auto

recovery

High-temperature and protection

105%~150%

150%~200%

  105%~150%

Type:pulsing hiccup shutdown Reset:auto

recovery

Temperature coefficient

  +/-0.03%(0~50)

Setup, rise,hold up time

200ms,100ms,30ms

Vibration

10-500Hz,,2G10min,/cycle, periodfor 60min,Each axes

Withstand voltage

Input and output interal:1.5KvAC,Input ad enclosure:1.5KvAC

Output and enclosure:0.5KvAC

Isolation resistance

Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10+60(Refer to output derating curve),20%90%RH

Stoerall dimension

-20+85.10%~95%RH

Overall dimension

199*98*38mm

Weight

0.65Kgs

Safety standards

Meet UL1012 requirement(Not apply for the mark)

EMC standaras

Meet FCC PART 15J Conduction class B




OVERALL DIMENSION
