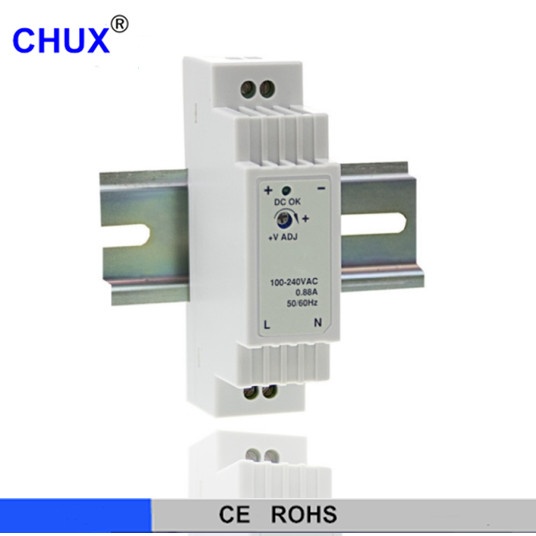

Din rail type switching power supply 15w 12v 15v 24v
Features :
•UniversalACinput/Fullrange
•Protections: Short circuit / Overload / Over voltage
•Coolingbyfreeairconvection
•Can be installed on DIN rail TS-35/7.5 or 15
•IsolationclassII
•LEDindicatorforpoweron
•Noloadpowerconsumption<0.5W
•100%fullloadburn-intest
•3 years warranty
| MODEL |
DR-15-5 |
DR-15-12 |
DR-15-15 |
DR-15-24 |
| OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
| RATED CURRENT |
2.4A |
1.25A |
1A |
0.63A |
| RATED POWER |
15W |
15W |
15W |
15W |
| RIPPLE&NOISE |
80mVp-p |
200mVp-p |
240mVp-p |
480mVp-p |
| VOLTAGE ADJ.RANGE |
4.75-5.5V |
10.8-13.2V |
13.5-16.5V |
21.6-26.4V |
| VOLTAGE TOLERANCE |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| SETUP,RISE TIME |
1000ms,50ms/230VAC 1000ms,50ms/115VAC at full load |
| HOLD UP TIME(TYP.) |
70ms/230VAC 16ms/115VAC at full load |
| INPUT |
VOLTAGE RANGE |
85-264VAC 120-370VDC |
| FREQUENCY RANGE |
47-63HZ |
| EFFICIENCY(Typ.) |
77% |
84% |
83.5% |
85% |
| AC CURRENT(Typ.) |
0.88A/115VAC 0.48A/230VAC |
| INRUSH CURRENT |
COLD START 35A/115VAC 65A/230VAC |
| PROTECTION |
OVERLOAD |
105-160% RATED OUTPUT POWER |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| OVER VOLTAGE |
5.75V-6.75V |
13.8V-16.2V |
17.2V-20.25V |
27.6V-32.4V |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| ENVIRONMENT |
WORKING TEMP |
-20~+60°C |
| WORKING HUMIDITY |
20-90%RH non-condesing |
| STORAGE TEMP,HUMIDITY |
-40~+85°C,10-95%RH |
| TEMP.COEFFICIENT |
±0.03%°C(0-50°C) |
| VIBRATION |
10-500HZ |
| SAFETY&EMC |
SAFETY STANDARD |
CE RoHS |
| WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute |
| ISOLATION RESISTANCE |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH |
| EMI CONDUCTION&RADIATION |
Design refer to GB4943,UL60950,EN60950 |
| EMC STANDARD |
Design refer to GB9254,EN55022 Class A |
| DIMENSION |
W25*H93*D56mm |
| PACKING |
0.25kg,60pcs/15kg
|
|
