Products > PHOTOELECTRIC SENSOR > photo sensor > E63

Product name : E63

Item : 2015414192352

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

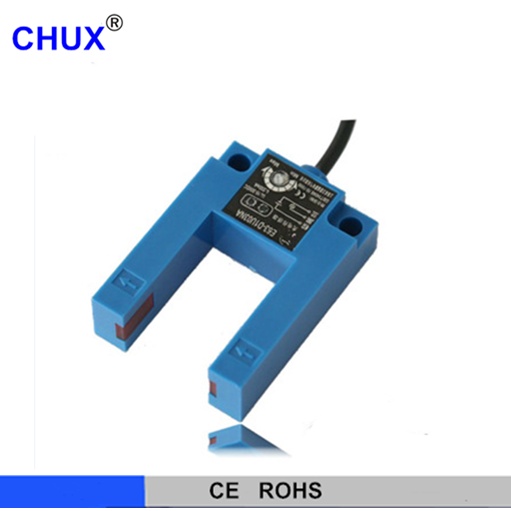

INFRARED SENSOR PHOTOELECTRIC SENSOR SWITCH U SHELL U TYPE E63

Details:

		DETECT DISTANCE
	DC		NO
		NPN	NC
Diffuse	10-30VDC		NO+NC
type			NO
		PNP	NC
			NO+NC
	AC	Control-silicon	NO
			NC
	90-250VAC	Relay output

		Detect distance
			NO
	DC	NPN	NC
	10-30VDC		NO+NC
Retroreflective			NO
type		PNP	NC
			NO+NC
	AC	Control-silicon	NO
	90-250VAC		NC
		Relay output

		Detect distance		3cm
			NO	E63-3E03NA
		NPN	NC	E63-3E03NB
	DC		NO+NC	E63-3E03NC
Trough beam			NO	E63-3E03PA
		PNP	NC	E63-3E03PB
type			NO+NC	E63-3E03PC
	AC	Control-silicon	NO
	90-250VAC		NC
		Relay output

Control output				DC:200mA AC:300mA
consumption current				DC<15mA AC<10mA
Response time				DC<2mS AC<20mS
Directional angle				3 -10
Detected object				transparent or opaque body
enviroment temperature				-25℃~ +55℃
shell material				Plastic / Metal
Protect grade				IP54
