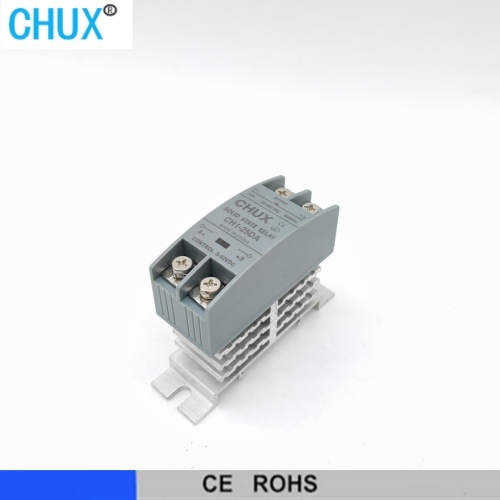

DIN Rail Mount Slim SSR  DC-AC Solid State Relay 24V 480V

Model  CH1-  DA
Load current     10A 25A 40A  60A  80A 100A
Load voltage  24-480VAC
Control voltage 3-32VDC
Control current 10-68mA
On state voltage drop ≤1.8VAC
On state leakage current ≤10mA
Off state time ≤10mS
Dielectric strength 2500VAC
Insulation resistance 1000MΩ500VDC
Ambient temperature "-25ºC -+75ºC
Mounting method Din rail type
Indicator LED
Weight 355g
