Products >> SOLID STATE RELAY >> solid state relay ssr

  • CHS-
CHS-

CHS-

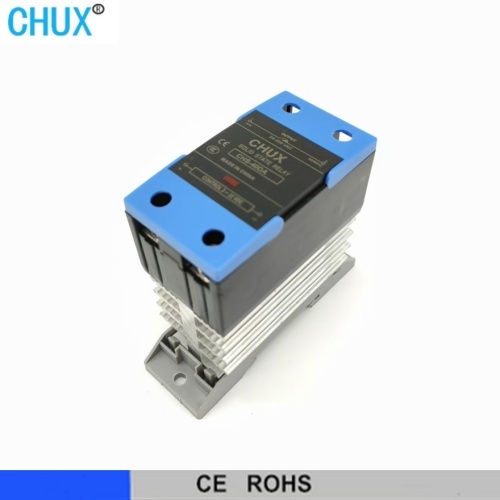

Single Phase Solid State Relay DIN Rail Mounted DC Control AC Heat Sink Integrated SSR

Model  CHS- **DA
Load current   10A  25A  40A  60A 80A 100A
Load voltage  24-480VAC
Control voltage 3-32VDC
Control current 10-68mA
On state voltage drop ≤1.8VAC
On state leakage current ≤10mA
Off state time ≤10mS
Dielectric strength 2500VAC
Insulation resistance 1000MΩ500VDC
Ambient temperature "-25ºC -+75ºC
Mounting method Din rail type
Indicator LED
Weight 355g

Previous Product：CH1- Next Product： SSR
