IM18-C

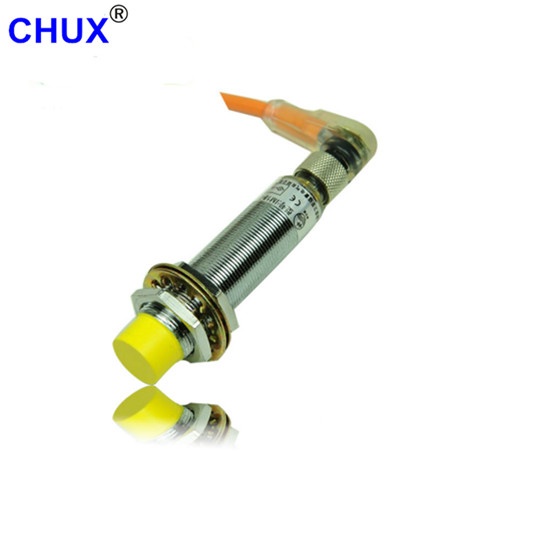

SENSOR WITH BEND CONNECTOR TYPE IM18-C

Note: NPN head color is yellow, PNP is Grenn and AC is red color

Outward appearance code				IM18-口口-C
Flush	Detection distance			5mm
	DC 6-36 VDC	NPN	NO	IM18-5-DNA-C
			NC	IM18-5-DNB-C
			NO+NC	IM18-5-DNC-C
		PNP	NO	IM18-5-DPA-C
			NC	IM18-5-DPB-C
			NO+NC	IM18-5-DPC-C
		Two wire systerm	NO	IM18-5-DLA-C
			NC	IM18-5-DLB-C
	AC 90~250 VAC	SCR control-lable silicon	NO	IM18-5-ACA-C
			NC	IM18-5-ACB-C
			NO+NC
		Relay output
Non- flush	Detection distance			8mm
	DC 6-36 VDC	NPN	NO	IM18-8-DNA-C
			NC	IM18-8-DNB-C
			NO+NC	IM18-8-DNC-C
		PNP	NO	IM18-8-DPA-C
			NC	IM18-8-DPB-C
			NO+NC	IM18-8-DPC-C
		Two wire system	NO	IM18-8-DLA-C
			NC	IM18-8-DLB-C
	AC 90~250 VAC	SCR Control-lable silicon	NO	IM18-8-ACA-C
			NC	IM18-8-ACB-C
			NO+NC
		Relay output
Output current		DC		200mA
		SCR/ Relay		300mA
Output voltage drop DC/AC				DC＜3V, AC＜10V, DC two wire＜3.9V
Consumption current				DC12V＜8mA, DC24V＜8mA, AC＜10mA
Standard detected object				18181 A3 Iron
Repeated precision				0.02
DC/AC Response frequency				200Hz/10Hz
Working environment temperature				-25°C~+65°C
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
Altemative model at home and abroad				E2E-XME1-M1
