IM8-C3

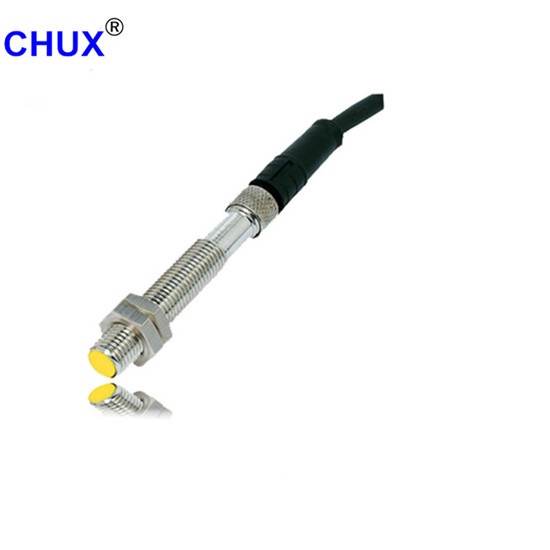

SENSOR WITH STRAIGHT CONNECTOR TYPE IM8-C3

Note: NPN head color is yellow, PNP is Grenn and AC is red color

Outward appearance code				IM8-口口-C3
Flush	Detection distance			1mm
	DC 6-36 VDC	NPN	NO	IM8-1-DNA-C3
			NC	IM8-1-DNB-C3
			NO+NC
		PNP	NO	IM8-1-DPA-C3
			NC	IM8-1-DPB-C3
			NO+NC
		Two wire systerm	NO	IM8-1-DLA-C3
			NC
	AC 90~250 VAC	SCR control-lable silicon	NO
			NC
			NO+NC
		Relay output
Non- flush	Detection distance			2mm
	DC 6-36 VDC	NPN	NO	IM8-3002NA-C3
			NC	IM8-3002NB-C3
			NO+NC
		PNP	NO	IM8-3002PA-C3
			NC	IM8-3002PB-C3
			NO+NC
		Two wire system	NO	IM8-3002LA-C3
			NC
	AC 90~250 VAC	SCR Control-lable silicon	NO	IM8-2002A-C3
			NC
			NO+NC
		Relay output
Output current		DC		150mA
		SCR/ Relay		150mA
Output voltage drop DC/AC				DC＜3V, AC＜10V, DC two wire＜3.9V
Consumption current				DC12V＜8mA, DC24V＜8mA, AC＜10mA
Standard detected object				881 (A3 iron)
Repeated precision				0.01
DC/AC Response frequency				500Hz/10Hz
Working environment temperature				-25°C~+70°C
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
Altemative model at home and abroad				E2E-X2ME1-M1
