YUEQING CHANCE ELECTRIC CO.,LTD

Product name : RK12-B
Item : 201531617614
 Enlarge Image                   Back
             [Next Product]→


  Details:

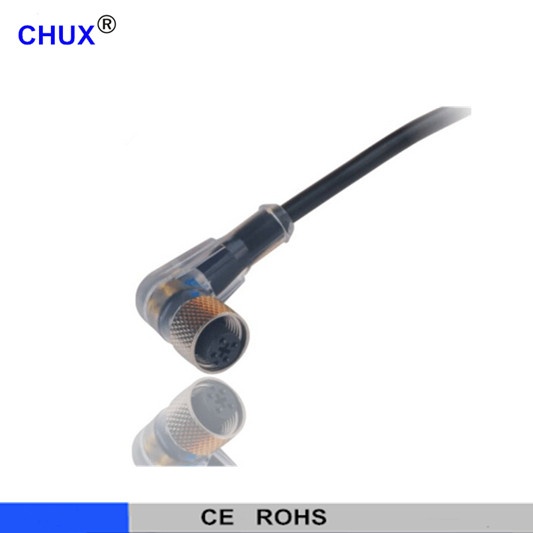

sensor connector bended type M12 NPN PNP oranger color



Description

Details

1. Connector Size

RK12-B

2. Current Rating

7A

3. Number of Contacts

3,4

4. Connector Type

Without  SR

5. Connector Gender

Male,Female

6. Contact Gender

Male,Female

7. Assembly Style

Field Installation

8. Mating Style

Screw

9. Backs hell

Straight

10. Waterproof Rating

IP68

Material:

Core Material: PA6+30%GF UL94V0

Pin and Hole: Brass, Nickle Plated or  Gold plated

Sealing: Silicone

Cable: Customize

Other type cable for customize

Property :

Contact Resistance: <5mΩ

Insulation Resistance: ≥500 MΩ at DC500V

Breakdown Voltage: ≥2.5kV normal, 1.0kV water

Temperature Rating: -45°C~+105°C

Protection Ration: IP68 10m Water 2 weeks

Durability: 3K plug/Unplug Cycles
Cable length : 2m 3m 5m 10m can do according customers request.
