Products > PROXIMITY SENSOR > sensor connector > RK8-B

Product name : RK8-B

Item : 201531616566

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

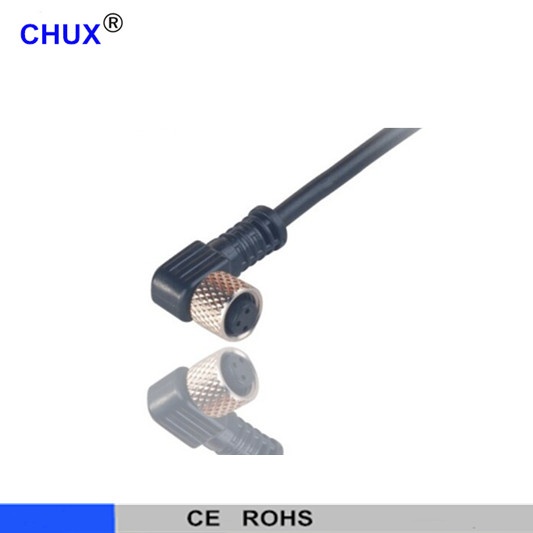

sensor connector M8 bended type proximity sensor RK8-B

Description	Details
1. Connector Size	RK8-B
2. Current Rating	7A
3. Number of Contacts	3,4
4. Connector Type	Without SR
5. Connector Gender	Male,Female
6. Contact Gender	Male,Female
7. Assembly Style	Field Installation
8. Mating Style	Screw
9. Backs hell	Bended
10. Waterproof Rating	IP68
Material: Core Material: PA6+30%GF UL94V0 Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles Cable length :2m 3m 5m 10m can according your request.
