Products > SOLID STATE RELAY > solid state relay ssr > 3SSR DC-AC AC-AC

Product name : 3SSR DC-AC AC-AC

Item : 20151261556

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

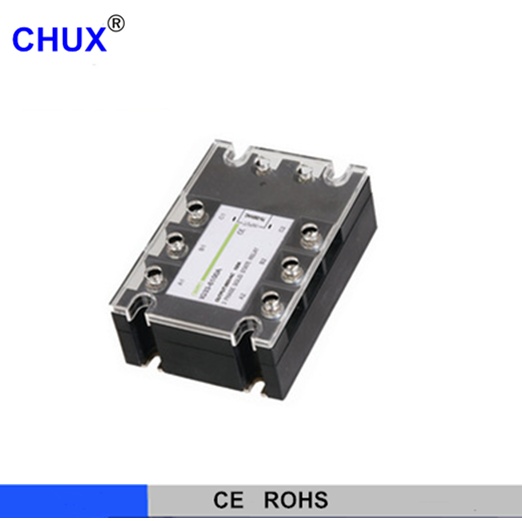

three phases SSR solid state relay ZG33 DC-AC

load current	10A,15A,20A,25A,30A,40A,
	50A,60A,,75A,80A,100A,120A
load voltage	480VAC
input voltage	3-32VDC / 70-280VAC
input current	10-68mA
voltage drop	≤1.8V
leakage current	≤10mA
on-off time	≤10mS
dielectric strength	2500VAC
insulation resistance	1000MΩ500VDC
ambient temperature	-30~+75℃
mounting method	bolt fixed
working indication	LED
weight	450g
