YUEQING CHANCE ELECTRIC CO.,LTD

Product name : IMF2
Item : 2015119162912
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

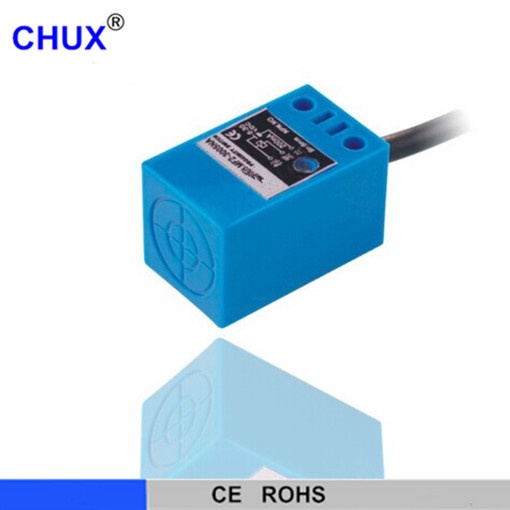

  INDUCTIVE SWITCH SQUARE TYPE PROXIMITY SENSOR IMF2

外形尺寸
OVERALL DIMENSIONS



     检测距离 DETECTION DISTANCE                             5mm




F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IMF2-5-DNA

NC

IMF2-5-DNB

NO+NC



PNP

NO

IMF2-5-DPA

NC

IMF2-5-DPB

NO+NC



二线制
two wire
system

NO

IMF2-5-DLA

NC

IMF2-5-DLB

SCR
可控硅
Control-
lable
silicon

NO



NC



NO+NC


继电器输出Relay output





     检测距离 DETECTION DISTANCE





F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO



NC



NO+NC



PNP

NO



NC



NO+NC



二线制
two wire
system

NO



NC



SCR
可控硅
Control-
lable
silicon

NO

IMF2-5-ACA

NC

IMF2-5-ACB

NO+NC



继电器输出Relay output



输出电流
Controloutput

DC

200mA

SCR/继电器 Relay

300mA

  输出电压降Output voltagc dropDC/AC

直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V

  消耗电流Consumption current

直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA

  标准检测物体Standard detected object

20X20X1(A3铁iron)

  重复精度Repeated precision

0.02

  响应频率DC/AC

400Hz/25Hz

  工作环境温度Working environment temperature

-25℃~+75℃

  绝缘电阻Insulation resistance

50MΩ

  外壳材料Shell material

ABS树脂Resin

  防护等级Protection grade

IP67

  可替代国内型号Altemative model at home and abroad

TL-Q5MC1
