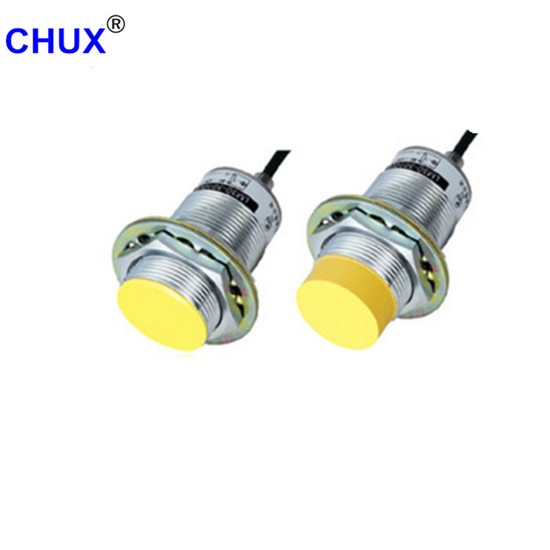

INDUCTIVE CYLINDER TYPE PROXIMITY SENSOR IM30

 Note:  NPN head color is yellow, PNP is Grenn and AC is red color

外形尺寸
OVERALL DIMENSIONS



     检测距离 DETECTION DISTANCE                             10mm




F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IM30-10-DNA

NC

IM30-10-DNB

NO+NC

IM30-10-DNC

PNP

NO

IM30-10-DPA

NC

IM30-10-DPB

NO+NC

IM30-10-DPC

二线制
two wire
system

NO

IM30-10-DLA

NC

IM30-10-DLB

SCR
可控硅
Control-
lable
silicon

NO

IM30-10-ACA

NC

IM30-10-ACB

NO+NC



继电器输出Relay output

IM30-10-JC



     检测距离 DETECTION DISTANCE                           15mm





F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IM30-15-DNA

NC

IM30-15-DNB

NO+NC

IM30-15-DNC

PNP

NO

IM30-15-DPA

NC

IM30-15-DPB

NO+NC

IM30-15-DPC

二线制
two wire
system

NO

IM30-15-DLA

NC

IM30-15-DLB

SCR
可控硅
Control-
lable
silicon

NO

IM30-15-ACA

NC

IM30-15-ACB

NO+NC



继电器输出Relay output

IM30-15-JC

输出电流
Controloutput

DC

200mA

SCR/继电器 Relay

300mA/1A

  输出电压降Output voltagc dropDC/AC

直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V

  消耗电流Consumption current

直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA

  标准检测物体Standard detected object

30X30X1(A3铁iron)

  重复精度Repeated precision

0.05

  响应频率DC/AC

200Hz/25Hz

  工作环境温度Working environment temperature

-25℃~+75℃

  绝缘电阻Insulation resistance

50MΩ

  外壳材料Shell material

金属Metal

  防护等级Protection grade

IP67

  可替代国内型号Altemative model at home and abroad

E2E-X18M口
