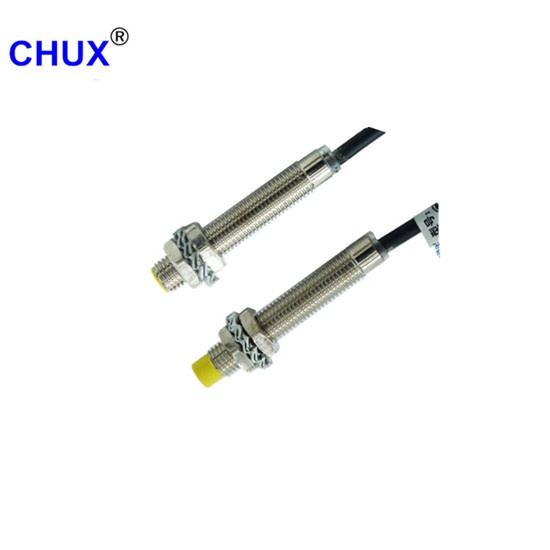

INDUCTIVE CYLINDER TYPE PROXIMITY SENSOR IM8

Note:  NPN head color is yellow, PNP is Grenn and AC is red color


外形尺寸
OVERALL DIMENSIONS



     检测距离 DETECTION DISTANCE                              1mm




F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IM8-1-DNA

NC

IM8-1-DNB

NO+NC

IM8-1-DNC

PNP

NO

IM8-1-DPA

NC

IM8-1-DPB

NO+NC

IM8-1-DPC

二线制
two wire
system

NO

IM8-1-DLA

NC

IM8-1-DLB

SCR
可控硅
Control-
lable
silicon

NO

IM8-1-ACA

NC

IM8-1-ACB

NO+NC



继电器输出Relay output





     检测距离 DETECTION DISTANCE                           2mm





F
l
u
s
h

直流
DC
10-
30
VDC



交流
AC
90-
250
VAC

NPN

NO

IM8-2-DNA

NC

IM8-2-DNB

NO+NC



PNP

NO

IM8-2-DPA

NC

IM8-2-DPB

NO+NC



二线制
two wire
system

NO

IM8-2-DLA

NC

IM8-2-DLB

SCR
可控硅
Control-
lable
silicon

NO

IM8-2-ACA

NC

IM8-2-ACB

NO+NC



继电器输出Relay output



输出电流
Controloutput

DC

200mA

SCR/继电器 Relay



  输出电压降Output voltagc dropDC/AC

直流(NPN PNP)型3V以下、二线型:3.9V以下、交流AC 10V以下 DC<3V、AC<10V

  消耗电流Consumption current

直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA

  标准检测物体Standard detected object

8X8X1(A3铁iron)

  重复精度Repeated precision

0.01

  响应频率DC/AC

500Hz/25Hz

  工作环境温度Working environment temperature

-25℃~+75℃

  绝缘电阻Insulation resistance

≥50MΩ

  外壳材料Shell material

金属Metal

  防护等级Protection grade

IP67

  可替代国内型号Altemative model at home and abroad

E2E-XIR5口口
