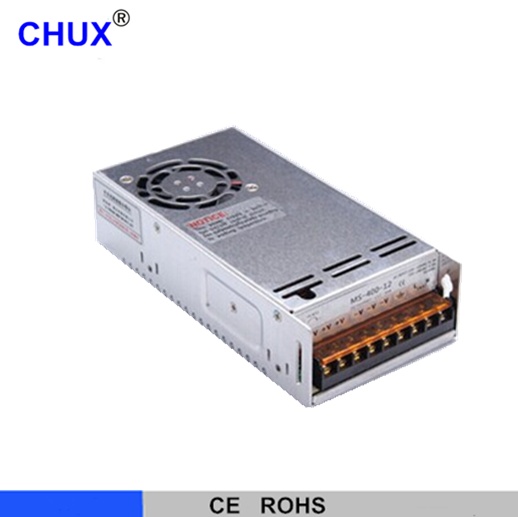

mini type mini size MS series electric industry switching power supply  MS series MS-400W

Features :



•  Universal AC input / Full range

• Protections:Short circuit/Over load/Over voltage

• Cooling by free air convection

• 100% full load burn-in test

• Fixed switching frequency at 37KHz

• 2 years warranty



SPECIFICATION

        MODEL

MS-400-5

MS-400-12

MS-400-15

MS-400-24













       OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

70A

33A

26A

16A

CURRENT RANGE

0 ~ 70A

0-33A

0-26A

0-16A

RATED POWER

350W

396W

390W

384W

RIPPLE & NOISE (max.) Note.2

100mVp-p

100mVp-p

120mVp-p

120mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

21.6 ~ 26.4V

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.0%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

200ms 100ms

HOLD UP TIME (Typ.)

30ms







        INPUT

VOLTAGE RANGE

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47~63Hz

EFFICIENCY(Typ.)

70%

76%

77%

79%

AC CURRENT (Typ.)

0.5A/115VAC 0.25A/230VAC

INRUSH CURRENT (Typ.)

COLD START15A/115VAC 30A/230VAC

LEAKAGE CURRENT

<0.5mA/ 240VAC



   PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed.





   ENVIRONMENT

WORKING TEMP.

-10 ~ +60°C (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C (0 ~ 50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes





       SAFETY &

          EMC

       (Note 4)

SAFETYSTANDARDS

UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A



       OTHERS

MTBF

522.1K hrs min. MIL-HDBK-217F (25) °C

DIMENSION

200*110*50mm (L*W*H)

PACKING

0.82Kg; 20pcs/16.4Kg





        NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.

3.Tolerance : includes set up tolerance, line regulation and load regulation.
