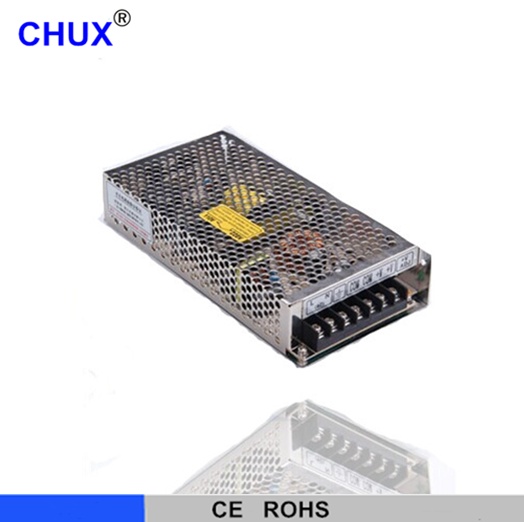

mini type mini size MS series electric industry switching power supply MS-200W
Features :
• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 77KHz
• 2 years warranty
Details:
|
MODEL
|
MS-200-5
|
MS-200-12
|
MS-200-15
|
MS-200-24
|
|
OUTPUT
|
DC VOLTAGE
|
5V
|
12V
|
15V
|
24V
|
|
RATED CURRENT
|
40A
|
16A
|
13A
|
8A
|
|
CURRENT RANGE
|
0 ~ 5040
|
0-16A
|
0-13A
|
0-8A
|
|
RATED POWER
|
200W
|
192W
|
195W
|
192W
|
|
RIPPLE & NOISE (max.) Note.2
|
100mVp-p
|
100mVp-p
|
120mVp-p
|
120mVp-p
|
|
VOLTAGE ADJ. RANGE
|
4.75 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5 ~ 16.5V
|
21.6 ~ 26.4V
|
|
VOLTAGE TOLERANCE Note.3
|
±2.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
|
LINE REGULATION
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
LOAD REGULATION
|
±1.0%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
SETUP, RISE TIME
|
200ms 100ms
|
|
HOLD UP TIME (Typ.)
|
30ms
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY RANGE
|
47~63Hz
|
|
EFFICIENCY(Typ.)
|
70%
|
76%
|
77%
|
79%
|
|
AC CURRENT (Typ.)
|
0.5A/115VAC 0.25A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START15A/115VAC 30A/230VAC
|
|
LEAKAGE CURRENT
|
<0.5mA/ 240VAC
|
|
PROTECTION
|
OVERLOAD
|
105 ~ 150% rated output power
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10 ~ +60°C (Refer to "Derating Curve")
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-20 ~ +85°C, 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
±0.03%/°C (0 ~ 50°C)
|
|
VIBRATION
|
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
|
|
SAFETY &
EMC
(Note 4)
|
SAFETYSTANDARDS
|
UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
|
|
EMC EMISSION
|
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
|
|
OTHERS
|
MTBF
|
522.1K hrs min. MIL-HDBK-217F (25) °C
|
|
DIMENSION
|
199*110*50mm (L*W*H)
|
|
PACKING
|
0.82Kg; 20pcs/16.4Kg
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
|
|
