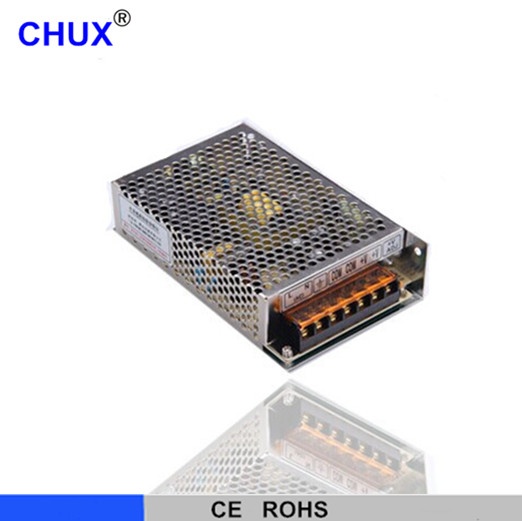

 mini type mini size MS series electric industry switching power supply MS-120W

Features :

•  Universal AC input / Full range

• Protections:Short circuit/Over load/Over voltage

• Cooling by free air convection

• 100% full load burn-in test

• Fixed switching frequency at 77KHz

• 2 years warranty



Model  MS-120-5 MS-120-12 MS-120-15 MS-120-24
Output DC Voltage 5V 12V 15V 24V
Rated Current 24A 10A 8A 5A
Current Range 0~24A 0~10A 0~8A 0~5A
Rated Power 120W 120W 120W 120W
Ripple & Noise (max.) Note.2 100mVp-p 100mVp-p 120mVp-p 120mVp-p
Voltage Adj. Range 4.75~5.5V 10.8~13.2V 13.5~16.5V 21.6~26.4V
Voltage Tolerance Note.3 ±2.0% ±1.0% ±1.0% ±1.0%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±1.0% ±0.5% ±0.5% ±0.5%
Setup,Rise time 200ms               100ms
Hold time (Typ.) 30ms
Input Voltage Range 85 ~ 264VAC          120 ~ 370VDC
Frequency Range 47~63HZ
Efficiency(Typ.) 70% 76% 77% 79%
AC Current(Typ.) 0.5A/115VAC          0.25A/230VAC
Inrush Current (Typ.) COLD START 15A/115VAC          30A/230VAC
Leakage Current <0.5mA / 240VAC
Protection Over Load 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Environment Working Temperature -10 ~ +60°c (Refer to "Derating Curve" )
Working Humidity 20~90% RH  Non-condensing
Storage temp.& humidity -20~+85°C, 10~95%RH
Temp. coefficient ±0.03%/°C (0~50°C)
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety & EMC

(Note 4.)

Safety Standards UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved
Withstand Voltage I/P-O/P:1.5KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH
EMC Emission Compliance to  EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level,  criteria A
Others MTBF 522.1K hrs min.      MIL-HDBK-217F (25 °c)
Dimension 159*97*37mm (L*W*H)
Packing 0.48Kg; 30pcs/4.55Kg/0.9CUFT
Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
