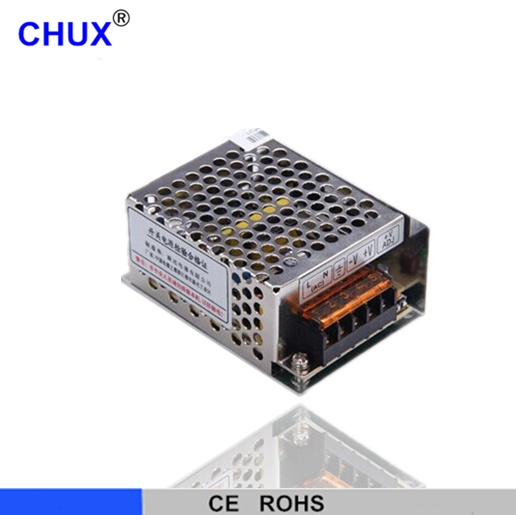

mini type mini size MS series electric industry switching power supply MS series MS-25W
Features:
Had 170 ~ 264 VAC input voltage range
Had small volume, light weight, high efficiency
Characteristics: short circuit protection miscalculates/overload
Had natural cooling
With that took on light emitting diode (led)
1 0, 0% had burned machine full load test
Details:
Model
|
MS-25-12
|
MS-25-15
|
MS-25-24
|
-----
|
output
|
DC voltage
|
12V
|
15V
|
24V
|
-----
|
Voltage tolerance
|
±1%
|
±1%
|
±1%
|
-----
|
Rated current
|
2.1A
|
1.7A
|
1.1A
|
-----
|
Current range
|
0~1.3A
|
0~1.7A
|
0~1.1A
|
-----
|
Rated power
|
25.2W
|
25.5W
|
26.4W
|
-----
|
Ripple&noise
|
100mvp-p
|
120mvp-p
|
150mvp-p
|
-----
|
DCvoltage ADJ.range
|
±10%
|
±10%
|
±10%
|
-----
|
input
|
Voltage range
|
90~264VAC,235~373VDC
|
frequency
|
47~63HZ
|
AC current
|
0.35A/230VAC
|
efficiency
|
78%
|
78%
|
80%
|
-----
|
Inrush current
|
Cold start current 30A/230VAC
|
Leakage current
|
< 0.5mA/240VAC
|
protection
|
overload
|
Rated output power110%~135% start over load protection
|
protection type :part layer type current limit ,auto-recovery after fault condition is removed
|
-----
|
-----
|
-----
|
environment
|
Working temp,humidity
|
-10°C~+60°C,20%~90%RH
|
Storage temp,humidity
|
-20°C~+85°C,10%~95%RH non-condensing
|
Withstand vibration
|
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
|
safety
|
Withstand voltage
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
Isolation resistance
|
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
|
Fit standard
|
Safety standard
|
Compliance toUL1012
|
EMC standard
|
Compliance toEN55022,CLASSA
|
others
|
Dimension
|
84*58*38mm (L*W*H)
|
Weight/packing
|
0.15kg/80pcs/13kg/0.024m³/0.87CUFT
|
note
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
|
|
